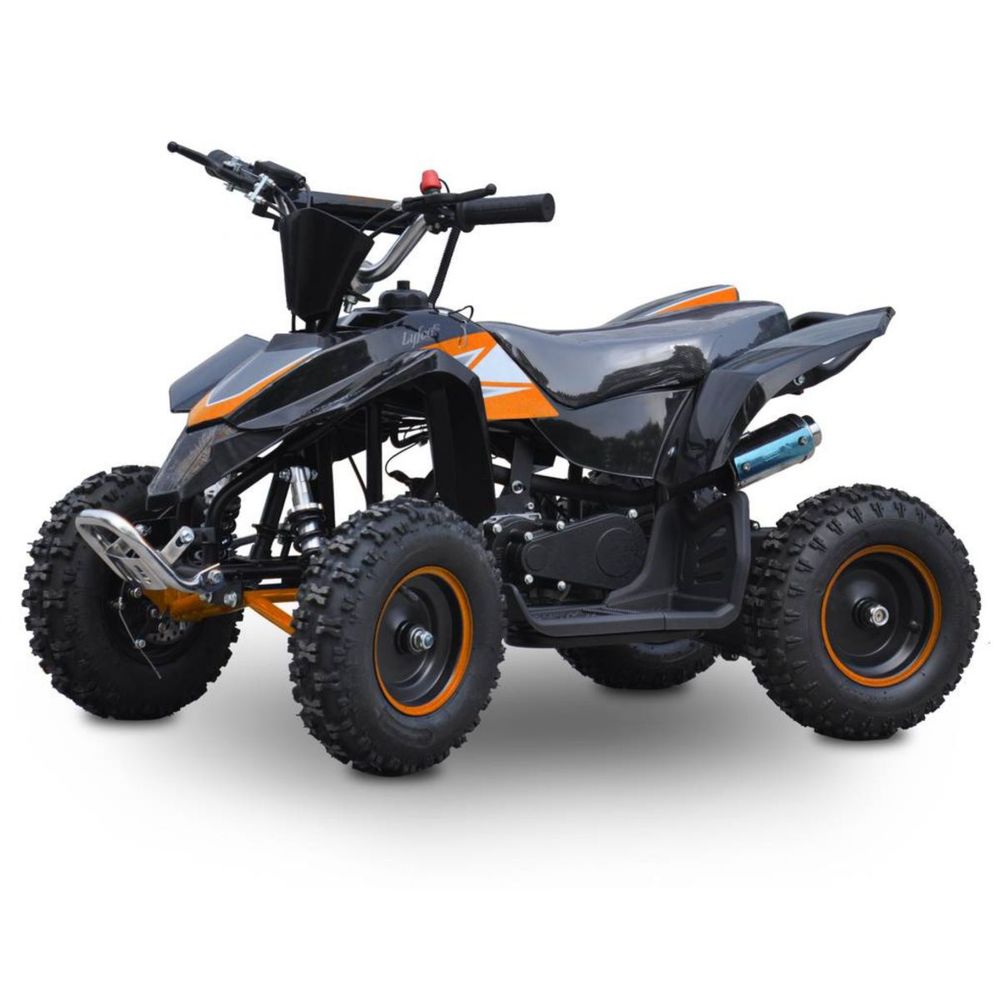

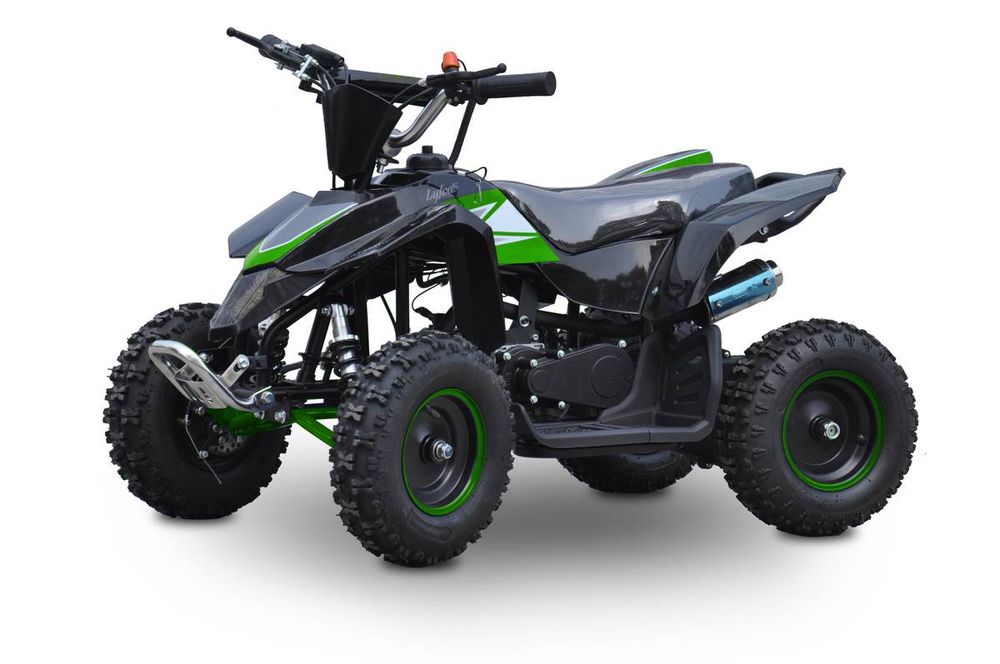

ATV for barn med 49 cc motor
- tommelgass som kan strupes
- justerbare aluminium struts
ATVen er fulldempet, 2 dempere foran og en bak. En innebygd dynamo lader batteriet mens du kjører.
Store dekk gir optimalt grep. Hastigheten kan justeres fra 5 til 45 km / t ved hjelp av strømningskontroll skruen på håndtaket, gjøres på noen få sekunder.
Denne modellen har easy start snorstart. Den pulverlakkerte rammen er motstandsdyktig mot forvitring og har et meget sporty design.
ATV`n er også utstyrt med metall bremsehendler, håndtak, en nødstopp dødmannsknap ledning, samt en tenningslås som hindrer uautorisert bruk.
Anbefalt tilbehør:
Hjelm
Knebeskytter
Pumpe med manometer
Skivelås
Model Premium 6
motor 49cc 2-takt
kjøling - luftkjølt
kraft 1.8 kW
Maks fart 45km / h
Fremdrift - kjede
Automatisk gir
Start - pull start
tank kapasitet 1 liter
bensin 1:25 bensin olje blanding
bremser - skivebremser
dekk 4.10-6 | 13x5.00-6
egenvekt 42 Kg
lastekapasitet 65 Kg
Leveranse informasjon:
Vekt: 32 kg
Størrelse eske: 112 x 59 x 46 cm
Volumvekt: 61 kg
Leveres som hjemlevering.
Anbefalt tilbehør:
Hjelm
Knebeskytter
Pumpe med manometer
Skivelås
Se alle reservedeler til modellen: Trykk her
Finner du ikke reservedelen du er på utkikk etter, ta kontakt, vi skaffer det du trenger
|
| 7 | ATV-8-020 | front shock |
| 8 | ATV-8-021 | front shock fixing bolt |
| 9 | ATV-8-022 | front shock fixing nut |
| 10 | ATV-8-023 | swing arm fixing bolt |
| 11 | ATV-8-024 | swing arm fixing nut |
| 12 | ATV-8-025 | turning knuckle |
| 13 | ATV-8-026 | turning knuckle fixing bolt |
| 14 | ATV-8-027 | washer |
| 15 | ATV-8-028 | bearing |
| 16 | ATV-8-029 | bush |
| 17 | ATV-8-030 | turning knuckle locknut |
| 18 | ATV-8-031 | front brake caliper |
| 19 | ATV-8-032 | font brake caliper fixing bolt |
| 20 | ATV-8-033 | front brake disc |
| 21 | ATV-8-034 | front brake disc fixing bolt |
| 22 | ATV-8-035 | front wheel hub space |
| 25 | ATV-8-036 | front rim----3.0-6 |
| 23 | ATV-8-037 | bearing |
| 24 | ATV-8-038 | bush |
| 26 | ATV-8-039 | screw |
| 28 | ATV-8-040 | nut |
| 29 | ATV-8-041 | front inner tire--3.0-6 |
| 30 | ATV-8-042 | tire air cover |
| 31 | ATV-8-043 | front wheel--3.0-6 |
| 32 | ATV-8-044 | front locknut |
| 33 | ATV-8-045 | front fender fix part |
| 34 | ATV-8-046 | steering base lock bolt |
| 35 | ATV-8-047 | steering base lock nut |
| 36 | ATV-8-048 | steering base |
| 37 | ATV-8-049 | steering |
| 38 | ATV-8-050 | transmission shaft |
| 39 | ATV-8-051 | bearing |
| 40 | ATV-8-052 | bushⅠ |
| 41 | ATV-8-053 | bushⅡ |
| 42 | ATV-8-054 | handle bar down clip |
| 43 | ATV-8-055 | handle bar down clip fixing nut |
| 44 | ATV-8-056 | handle bar down clip fixing bolt |
| 45 | ATV-8-057 | handle bar uper clip |
| 46 | ATV-8-058 | bush Ⅲ |
| 47 | ATV-8-059 | steering lock nut |
| 48 | ATV-8-060 | handle bar |
| 49 | ATV-8-061 | handle grip |
| 50 | ATV-8-062 | front brake lever |
| 51 | ATV-8-063 | turn off switch |
| 52 | ATV-8-064 | rear brake lever |
| 53 | ATV-8-065 | frame |
| 54 | ATV-8-066 | key switch |
| 55 | ATV-8-067 | engine |
| 56 | ATV-8-068 | carb. |
| 57 | ATV-8-069 | air fliter |
| 58 | ATV-8-070 | throttle cable |
| 59 | ATV-8-071 | lower engine fixing bolt |
| 60 | ATV-8-072 | lower engine fixing bolt spring washer |
| 61 | ATV-8-073 | lower engine fixing bolt gasket |
| 62 | ATV-8-074 | upper engine fixing plate |
| 63 | ATV-8-075 | upper engine fixing bolt |
| 64 | ATV-8-076 | upper engine fixing nut |
| 65 | ATV-8-077 | exhaust pipe |
| 66 | ATV-8-078 | exhaust pipe gasket |
| 67 | ATV-8-079 | exhaust pipe fixing bolt |
| 68 | ATV-8-080 | exhaust pipe rear fixing bolt |
| 69 | ATV-8-081 | spacer |
| 70 | ATV-8-082 | exhaust pipe rear fixing nut |
| 71 | ATV-8-083 | chain |
| 72 | ATV-8-084 | rear reflector plate |
| 73 | ATV-8-085 | undercarriage for foot |
| 74 | ATV-8-086 | rear fork fixing bolt |
| 75 | ATV-8-087 | rear fork fixing nut |
| 76 | ATV-8-088 | rear fork |
| 77 | ATV-8-089 | right bracket |
| 78 | ATV-8-090 | left bracket |
| 79 | ATV-8-091 | rear shock |
| 80 | ATV-8-092 | rear shock fixing bolt |
| 81 | ATV-8-093 | rear shock fixing nut |
| 82 | ATV-8-094 | rear fork snap-fit |
| 83 | ATV-8-095 | sprocket |
| 84 | ATV-8-096 | sprocket fixing bolt |
| 85 | ATV-8-097 | eccentric gearⅠ |
| 86 | ATV-8-098 | bearing Ⅰ |
| 87 | ATV-8-099 | rear axle |
| 88 | ATV-8-100 | rear brake set |
| 89 | ATV-8-101 | rear brake disc locknut |
| 90 | ATV-8-102 | bearing Ⅱ |
| 91 | ATV-8-103 | eccentric gearⅡ |
| 92 | ATV-8-104 | rear brake caliper fixed plate |
| 93 | ATV-8-105 | rear brake caliper fixed stand |
| 94 | ATV-8-106 | bushⅠ |
| 95 | ATV-8-107 | rear brake caliper |
| 96 | ATV-8-108 | rear brake caliper fixing bolt |
| 97 | ATV-8-109 | rear shaft |
| 98 | ATV-8-110 | bushⅡ |
| 99 | ATV-8-111 | rear wheel locknut |
| 100 | ATV-8-112 | rear rim--3.0-6 |
| 101 | ATV-8-113 | teriangular plate |
| 102 | ATV-8-114 | locknut |
| 103 | ATV-8-115 | nut |
| 104 | ATV-8-116 | rear inner tire--3.0-6 |
| 105 | ATV-8-117 | tire air cover |
| 106 | ATV-8-118 | rear wheel--3.0-6 |
| 108 | A-2 | Pullstart claw clog (Aluminum) |
| 109 | A-3 | Ignition coil |
| 110 | A-4 | flywheel--for normal pull start |
| 111 | A-5 | NEW FLYWHEEL--for easy pull start |
| 112 | A-6 | crankcase right |
| 113 | A-7 | spark plug |
| 114 | A-8 | cylinder |
| 115 | A-9 | cylinder gasket |
| 116 | A-10 | crankcase gasket |
| 117 | A-11 | crankcase left |
| 118 | A-12 | clutch |
| 119 | A-13 | gear box with 6T sprocket |
